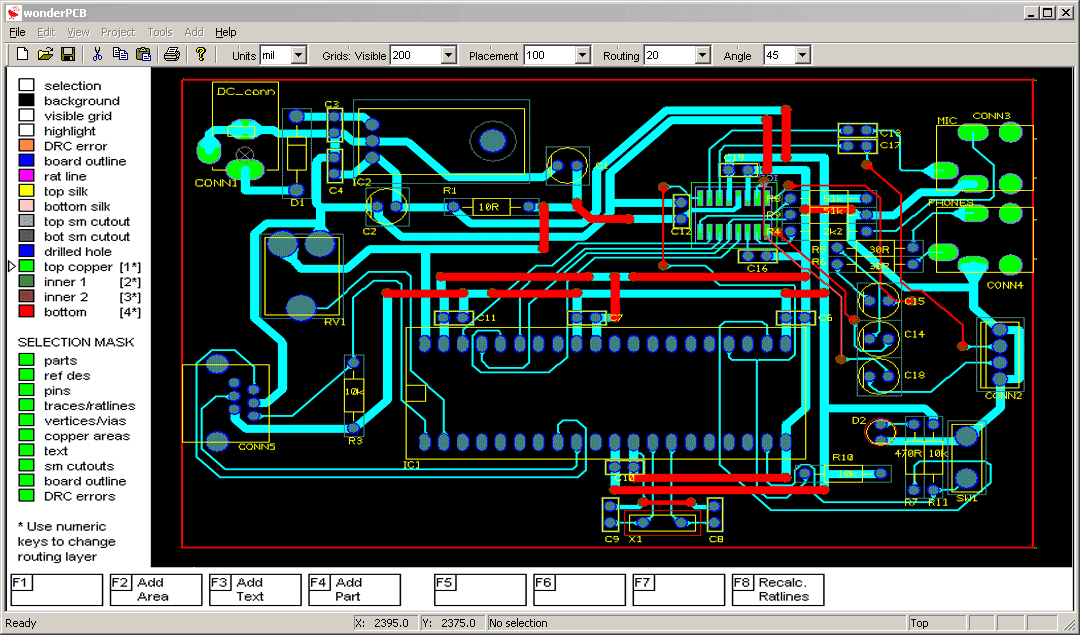

wonderPCB

wonderPCB is a PCB editor for Microsoft Windows. It is easy to learn and use, yet capable of professional-quality work.

Some of its features are:
• 1 to 16 copper layers
• Board size up to 60 inches by 60 inches
• Uses English or metric units (i.e. mils or mm) for most functions.
• Footprint libraries courtesy of Ivex Design International Inc.
• Copper fill areas
• Footprint Wizard and Footprint Editor for creating or modifying footprints
• Imports and exports PADS-PCB netlists
• Exports extended Gerber files (RS274X) and Excellon drill files
• Design rule checker
• Autosave
